Large Watertight Enclosure with Hinged and Latching Lid - UL Listed - 6.7” x 10.63” x 4.33"

$80.00

description

This is a UL and cUL Listed watertight enclosure with hinged, latching, and gasketed lid.
View More

More information

Type: Outdoor, Watertight

Mounting: Surface Mount

Dimensions: 6.7” x 10.63” x 4.33"

Features: Clear Lid, Heavy Gasket, Stainless Steel Hinge Pins and Latches

DIN Rail: 2 Pieces Included, for Either Short or Long Axis Mounting

Model: EKM-172711

UL and cUL Listed. Use in conjunction with our UL Listed meters and CTs for a complete UL approved installation.

Tough, polycarbonate, water-tight enclosure, excellent for housing one or more of our electric meters.

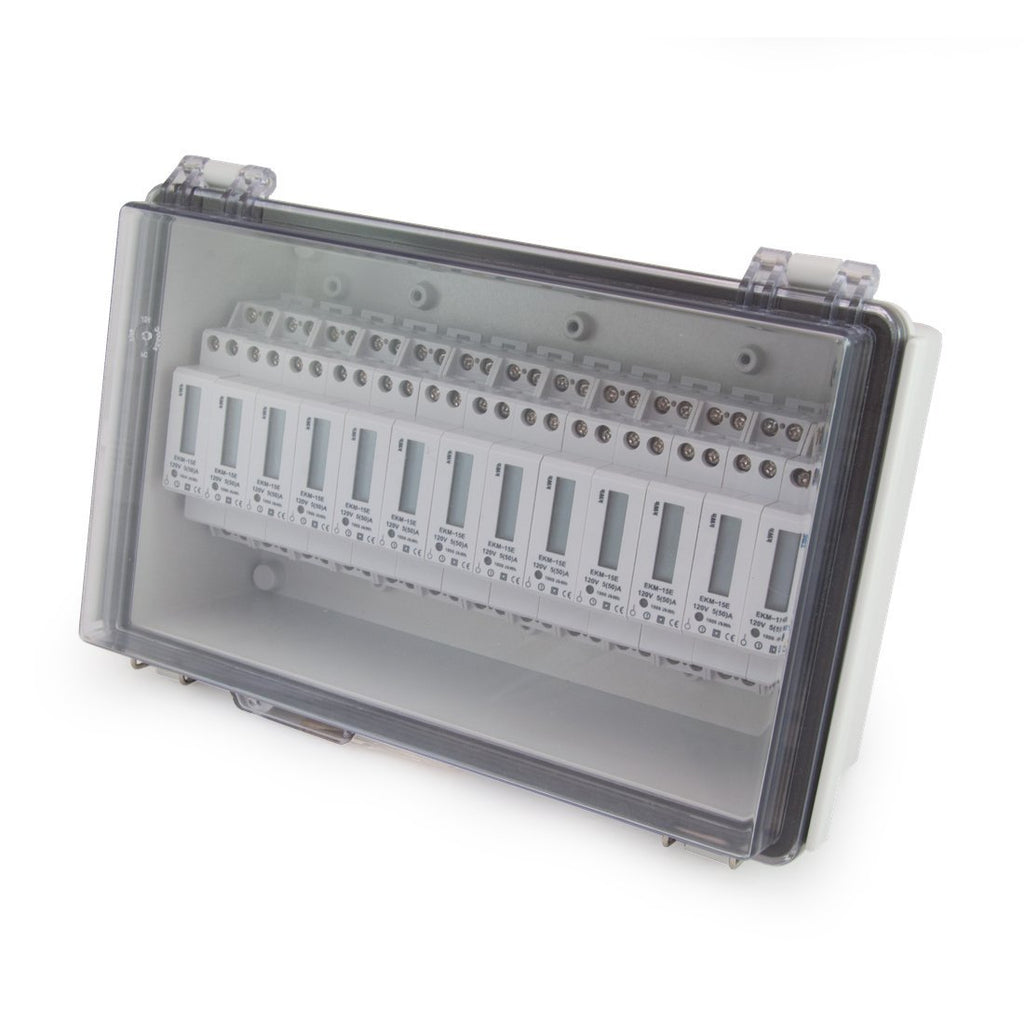

House up to 2 of the XL format meters such as the Omnimeter HV v.4 (a very tight fit!). House up to 2 of the large format meters such as the Omnimeter II UL v.3 or the Omnimeter Pulse UL v.4. House up to 3 of the medium format meters, such as the Omnimeter I v.3, or up to 13 of the smaller EKM-15E, 18mm wide meters.

Will house any v.3 or v.4 Omnimeter (but not the HV model), with a Push3 gateway, and a DIN Rail Mounting 12V Power Supply, for the Push3.

An ultraviolet stabilizer has been added to the transparent polycarbonate lid to prevent discoloration when installed outdoors. Even so, we recommend that the enclosure be installed out of direct sunlight to ensure that the enclosure outlasts your meter(s).

NEMA 4X rated.

The hinge pins and latches are stainless steel to prevent corrosion over time.

Case and lid both have a small hole intended for a Seal or lock. This is to prevent tampering with the contents of the enclosure after it is installed. (seal or lock not included)

Holes for conduit connections need to be made to suit your needs.

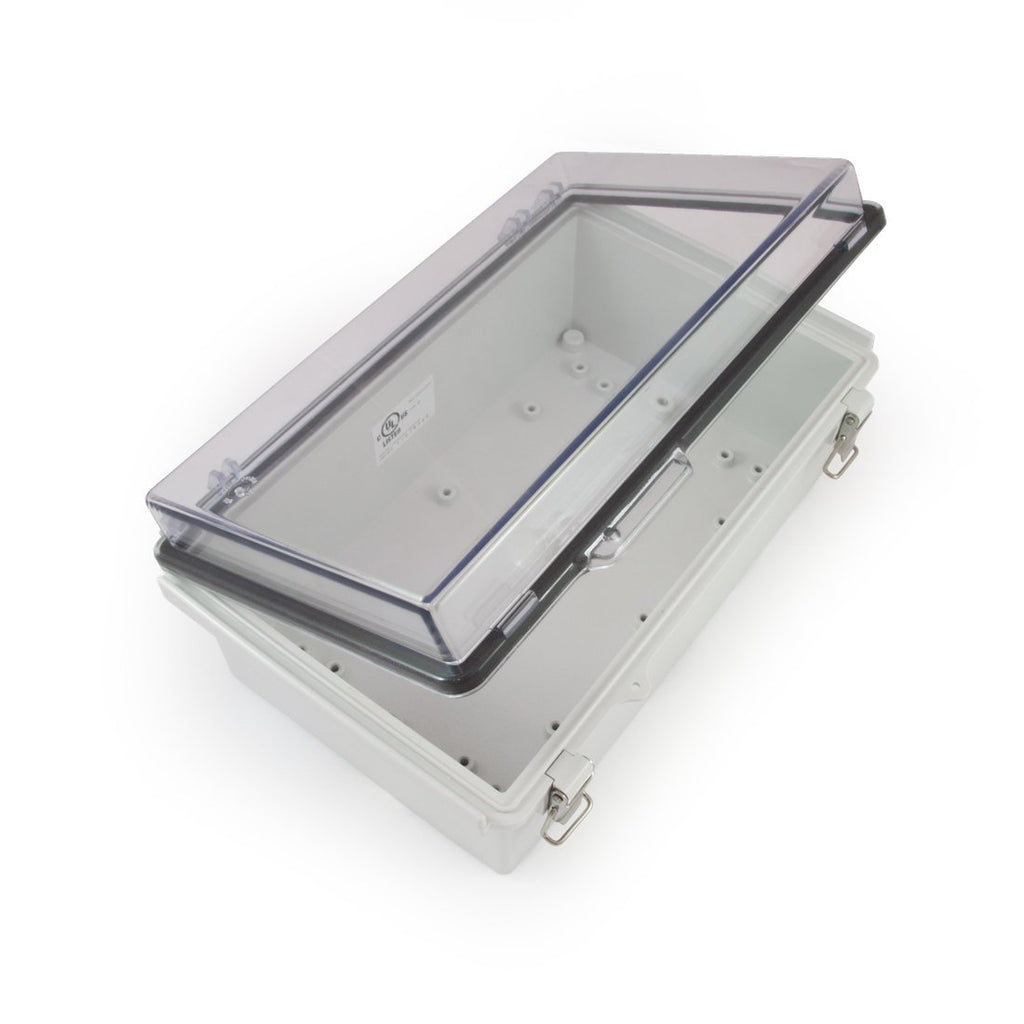

Cover is gasketed for a water-tight seal. No additional screws are needed for mounting meters. Two pieces of DIN-rail are included, which allows you to choose which direction (short or long axis) you want to mount your meter(s).

  • Certifications:
  • UL508A Certificate from Underwriter’s Laboratories
  • ISO 9001 and ISO 14001 approval from SGS
  • Obtained Certificate of CE by EN from EOTC (European Organization for Testing and Certification)
  • Obtained TUV, IP67, IK08 from Germany for plastic enclosures
  • Obtained RoHS Certification from SGS, the world’s leading inspection agency in Geneva, Switzerland
  • Standard Certification KTL C067-2007 for resin box used for indoor and outdoor electrical equipment below 600v AC
  • Passed in Combustion Resistance Test 94:2003 of Korea Institute of Construction Materials
  • Passed in Combustion Resistance Test of V–0 for Polycarbonate from Korean Environment and Merchandise Testing Institute
  • EX degree: Exe II T5. Certificate Number: CNEx07.0311U

For more information about our products and services, we encourage you to visit our online Knowledge Base, which provides spec sheets, videos, tutorials, FAQs, diagrams, and more.

Please note: We do not recommend that this enclosure be installed in direct sunlight. If it is installed in direct sunlight, we recommend creating a shade for the clear cover. Without a shade the clear cover in direct sunlight will cause the interior of the enclosure to become very hot in some climates, which could damage products in the enclosure.

The EKM-172711 Spec Sheet is available here: UL Enclosure Spec Sheet.

  • 5 stars: 5 (83%)
  • 4 stars: 1 (17%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
G
Graham Bell

Good product but fewer internal standoffs/mount points than earlier product complicated installation.

M
Mike M
What can i say?

It's an enclosure. It has all the features spec'd. It's build quality is high. The accessories it came with were perfectly thought out. The support is great.

L
Laurent Hildreth

Great

J
Jon Howard
Perfect enclosure for meter!

A great box to protect the meter, and a bonus clear cover to make reading easier. Very pleased with EKM and their fine products!
Thanks !

N
Nathan Hlava
Fast and Easy

The product is what it says it is and ekm did a great job of getting me then promptly

S
Stephen Moreno
Excellent Meters & Fast Delievery

I normally do not give reviews, but this company has provided us with great service, fast delivery, and we have no issues with the product. We ordered about 180 of these things for a job, then had no problems returning some of the items we didn't need. We just recently moved into a shop and we install one of these on the unit we are renting out. We did the big job about 8 months ago and have had no complaints from our customer.

w
west row ave reality corp

we would like to set up each boat slip with it's own meter, do you have an enclosure that can house 6 meters and what meter would you recomend for marine use

EKM Metering Inc.

You can find our largest watertight enclosure here: https://www.ekmmetering.com/collections/enclosure/products/xl-ul-watertight-enclosure

That enclosure can fit up to 6 of our Omnimeter I v.3: https://www.ekmmetering.com/collections/all-products/products/ekm-omnimeter-i-v3

Or up to 4 of our Omnimeter II UL v.3, Omnimeter Pulse v.4, and/or Omnimeter Pulse UL v.4:
https://www.ekmmetering.com/collections/all-products/products/ekm-omnimeter-ii-ul-v3
https://www.ekmmetering.com/collections/all-products/products/omnimeter-pulse-v4
https://www.ekmmetering.com/collections/all-products/products/ekm-omnimeter-pulse-ul-v4

Any of these Omnimeters are suitable for marine use if there are housed in a watertight enclosure and are kept dry.

J
James

Hello, is this sealed to the point of being able to be completely submerged without leaking? I understand there will need to be minor seal plugging where the wires go in etc.

EKM Metering Inc.

Yes, this enclosure is IP67 rated which means it can be "immersed in 1 meter of freshwater for up to 30 minutes."

More on IP ratings here: https://en.wikipedia.org/wiki/IP_code

E
Elaine Hester

Can this actually hold 3 meters installed? The photo is somewhat misleading since it does not show any wiring or antennas.

EKM Metering Inc.

Thanks for the inquiry.

You can fit up to 3 of the Omnimeter I v.3 meters or the EKM-25XDSE meters in that enclosure, however for any other meters (the Omnimeter II UL v.3 or any of the v.4 models) you can fit two.

J
Joseph Brice

What is the Length - Width & Depth of the EKM-25XDSE Single Phase Pass Through kWh Meter, in Inches and which Weatherproof Enclosure should I Purchase with this Unit

EKM Metering Inc.

Here is the link to the spec sheet (https://documents.ekmmetering.com/EKM-25XDSE-Spec-Sheet.pdf) for the EKM-25XDSE, which displays the dimensions on a diagram of the meter.
Here are the dimensions converted from millimeters to inches:
100mm = approx. 3.94 inches
88mm = approx. 3.46 inches
65mm = approx. 2.56 inches

You can use any of our enclosures here (https://www.ekmmetering.com/collections/enclosure). If you need weatherproof, select one of the watertight models.
