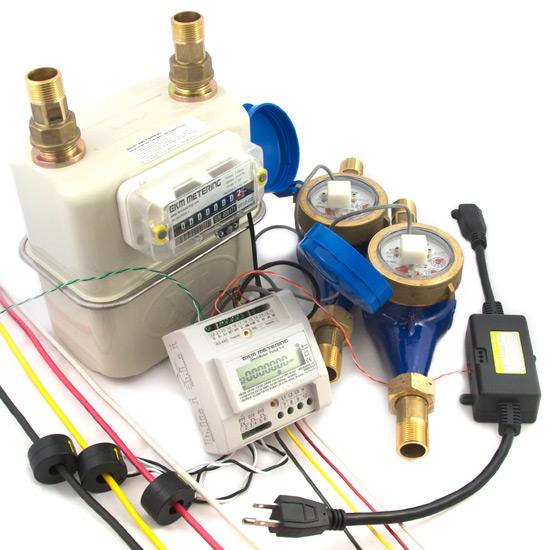

EKM Omnimeter Pulse UL v.4 – Pulse Counting, Relay Controlling, Universal Smart Electric Meter, UL Listed, ANSI

$ 5,402.00

Qty Price (USD)
1 - 9 $290.00
10 - 19 $271.15
20 - 49 $242.15
50 - 99 $213.15
100 - + $184.15
description

This electric meter can be used on single-phase or 3-phase systems.  It is a UL Listed, ANSI C12.1 and C12.20 certified kWh meter can be used on nearly any electrical system in common use and can also count pulses from up to 3 pulse-output devices, as well as control up to 2 external relays. This meter also meets California's Title 24 requirements for service metering. Free cloud data service when paired with an EKM Push3 gateway!
View More

More information

Description: Universal, Pulse Counting, Relay Controlling, Smart Meter

Features: Pulse Counting and Relay Controls

Voltage: 120 volts, 120/240 volts, 120/208 volts, 230 volts

Amperage: Up to 5000 amps

Type: External CT, 50 or 60 Hz

System: Single-Phase, 3-Ph. 3-Wire, or 3-Ph. 4-wire

Data: Smart Meter v.4 RS-485 Communications

Certifications: California Type Approval, ANSI C12.1 and C12.20, UL and cUL Listed

Warranty: 10 year warranty

Model: EKM-Omnimeter Pulse UL v.4

The Omnimeter Pulse UL v.4 is our most advanced universal smart meter to date, now with the ability to count pulses from up to 3 pulse-output devices, and control 2 external relays. This model is certified to meet (it actually exceeds) ANSI C12.1 and C12.20 standards. It is also UL and cUL Listed. This is truly the one meter to meet all of your metering needs!

This is a revenue-grade universal kWh meter. It can meter systems ranging from single-phase 120V 2-wire, single-phase 120/240V 3-wire, 3-phase 3-wire 120 to 240 volts, or 3-phase 4-wire 120 to 240V. 50/60Hz. It Supports CTs from 100A to 5000A. This meter will work with any system that is commonly used in the world. Accurate to 0.5% (Class 0.5)

This meter has been designed to meet California's 2013 Title 24 (page 151) requirements for energy management and service metering (Section 130.5A). Depending on the service, these requirements can include – Instantaneous kW demand, resettable kWh, historical peak demand, and kWh per rate period; all of which are provided by this meter.

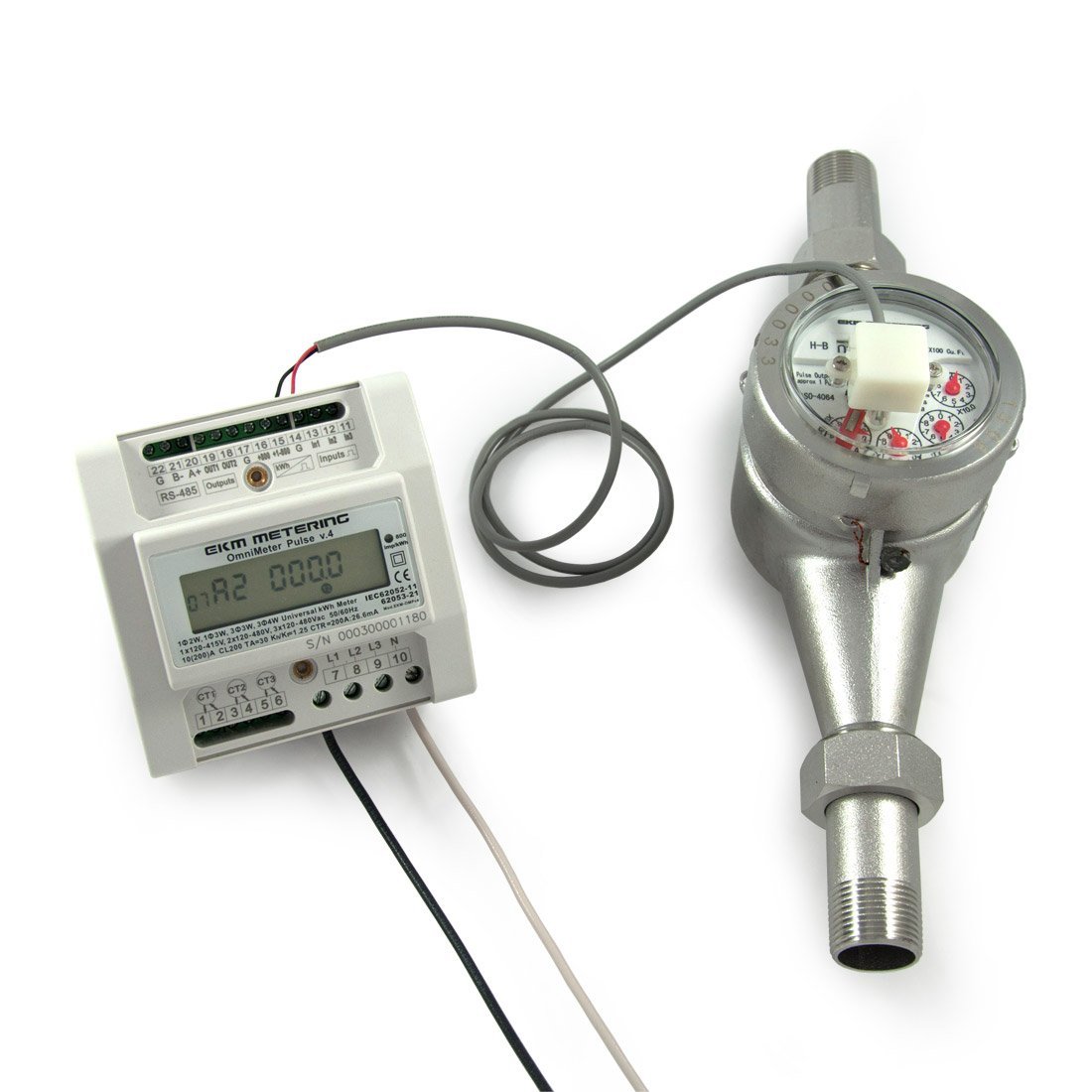

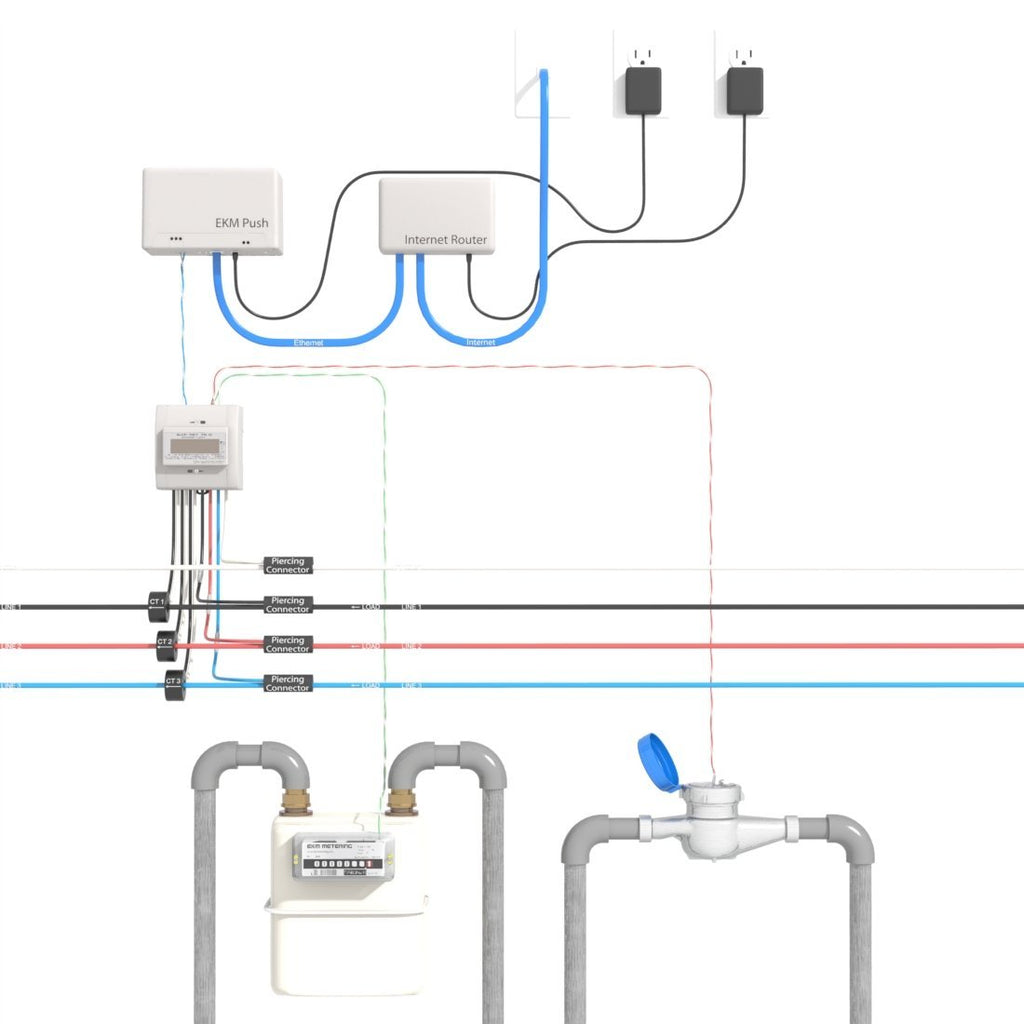

The v.4 Omnimeters can also count the pulses from up to 3 different pulse output devices, as is explained in this video. These could be pulses from our Pulse Output Water and Gas Meters or from any other un-powered dry contact pulse output device. The real-time state of the three Inputs can also be polled remotely by our EKM Push3 gateway. The Omnimeter data will return a High or Low state for each pin in real-time (use this for sensing switch states, open or closed doors, etc).

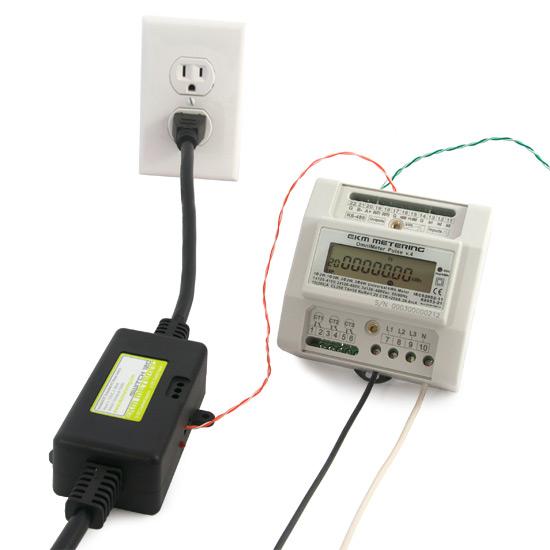

The v.4 Omnimeters also include 2x controllable relay outputs. These can be controlled via RS-485, either locally via our EKM Dash software, or remotely online via our Push3 gateway. You can set the outputs to be high or low to drive an external relay. The Relay Control Outputs can continuously provide up to 50 mA at 12 volts DC each. Control the EKM-Switch120 directly, or control lights, motors, entire buildings, implement Demand Response, Load Shedding, etc. via relay control. The Relay Control Outputs can also be set to go ON or OFF from 1 to 9999 seconds.  These outputs can also be controlled via EKM Push3 triggering. The real-time state of the outputs can also be polled via RS485. The outputs can also be used to power an external device (Wireless 485Bee Module, sensors, etc). Relays can be controlled online when reading the meter with the EKM Push3 data system either manually, via the API, or using triggersor locally when reading the meter with a USB Converter.

The Omnimeter Pulse is also great option for solar Net Metering. In addition to Total and Reverse kWh, that all of our Omnimeter models provide, these meters also provide the direction of current in real time. This makes it possible to know, in real time, if you are generating more power than you are consuming, and whether you are sending or pulling power, to or from the grid. Also, because it is certified to ANSI standards, it is possible to receive SRECs (Solar Renewable Energy Certificates) with this meter.

This meter uses our full range of compact Current Transformers (it cannot meter electricity with out at least one CT, but can be used as just a pulse counter if you do not have CTs). The CT ratio can be set internally to work with up to 5000 amp CTs (no multiplier needed).

  • Use 1 CT for 120 volt single phase North American, or 230 volt 2-wire foreign systems
  • Use 2 CTs for 120/240 volt single phase systems
  • Use 2 CTs for 3-phase 3-wire systems (no neutral)
  • Use 3 CTs for 3-phase 4-wire systems

Easy clip-on DIN Rail Mounting.

How to install an Omnimeter Pulse v.4:


These meters are also supported by our revolutionary EKM Push3 system. This is our cloud-based, plug-and-play, meter data solution. We are really excited about this new system, and recommend it for most remote reading applications that use our Omnimeter models. Push3 users can also take advantage of Encompass.io, which is our free online dashboard and meter management suite.

Encompass.io

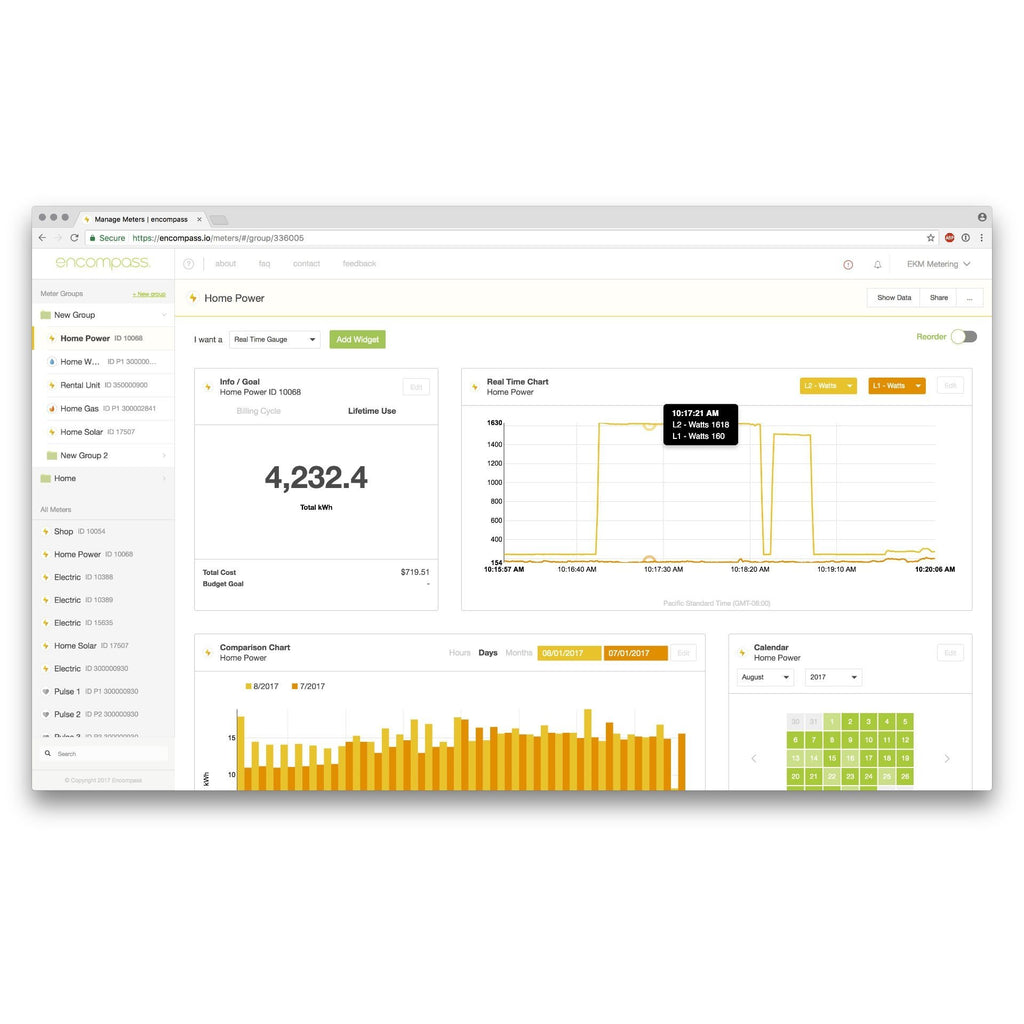

Encompass.io is our free online meter management platform for monitoring data, managing meters, generating bills, and more. It is designed specifically for people who are remotely reading their meters via the Push3 system. This platform can be used to visualize data on customizable dashboards, visualize cost, monitor trends, group meters, and a lot more. Each meter and meter group in Encompass can also be set up to email you, and/or your tenant, PDF bills. Here is a sample PDF electric bill:


EKM Widget

The EKM Widget offers another option for quickly seeing your meter data online for EKM Push users. It is also easy to save and share your Widget setting once you have it setup how you want. Here is an example:


EKM Dash

Our Omnimeters are also fully supported by our free, remote reading, EKM Dash software. If you want to read your Omnimeter on a computer locally, without the Push3 system, then this software is what you would use. You will also need an EKM Blink USB Converter in order to do so.

For more information about our products and services, we encourage you to visit our online Knowledge Base, which provides spec sheets, videos, tutorials, FAQs, diagrams, and more.

Spec Sheet: Omnimeter Pulse UL v.4 Spec Sheet




To better understand the differences between Omnimeter models you can download our Omnimeter and Communication Device Comparison Chart.



INSTALLATION DIAGRAMS

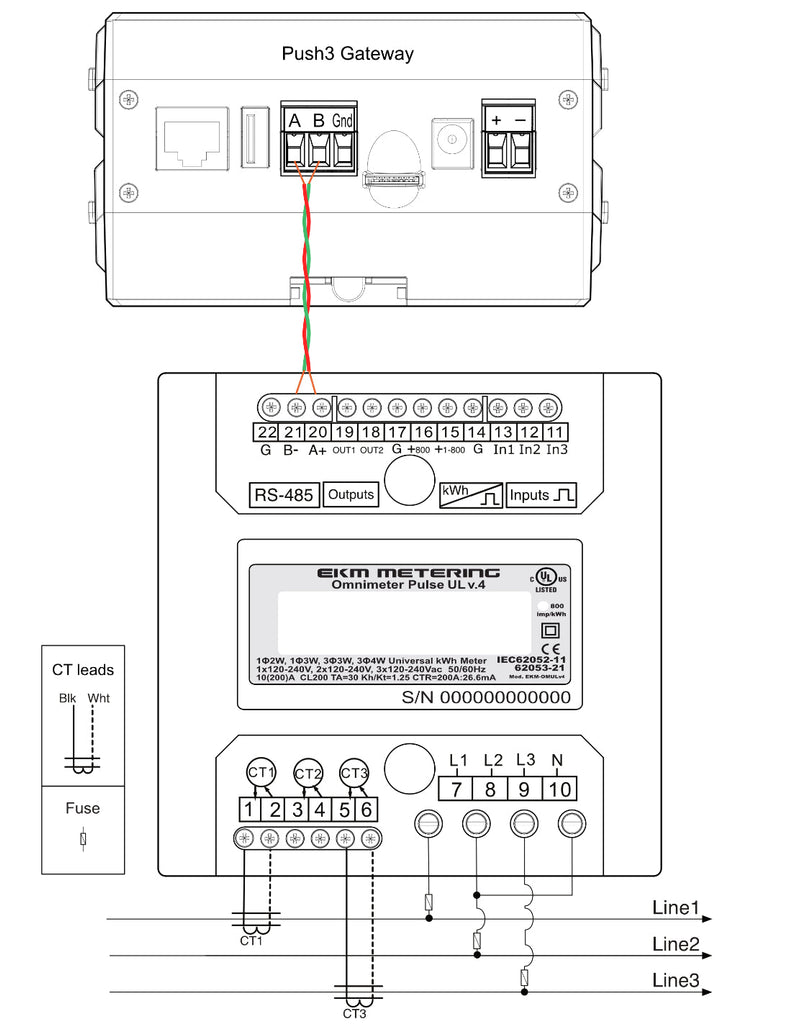

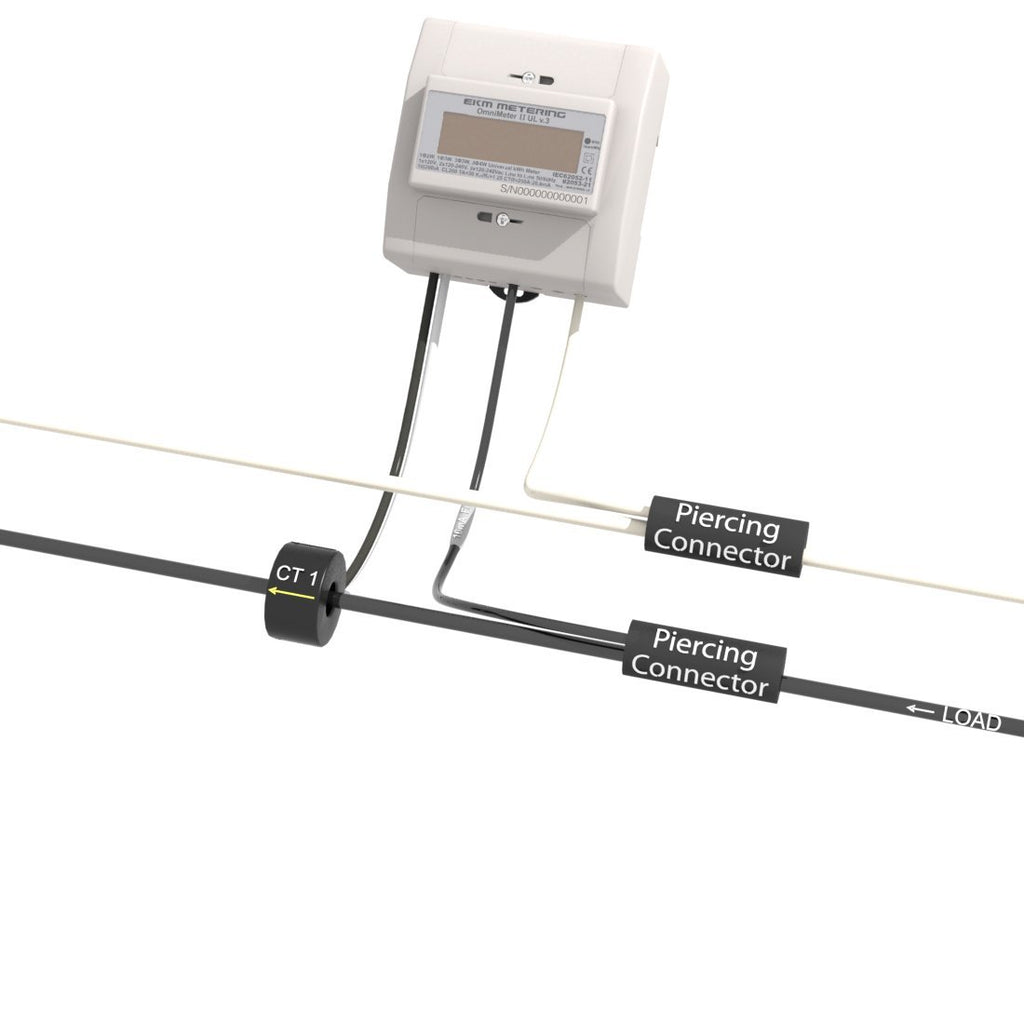

Single-Phase 2-Wire (Hot and Neutral) + Push3

Single-Phase 2-Wire (2 Hots, no Neutral) + Push3

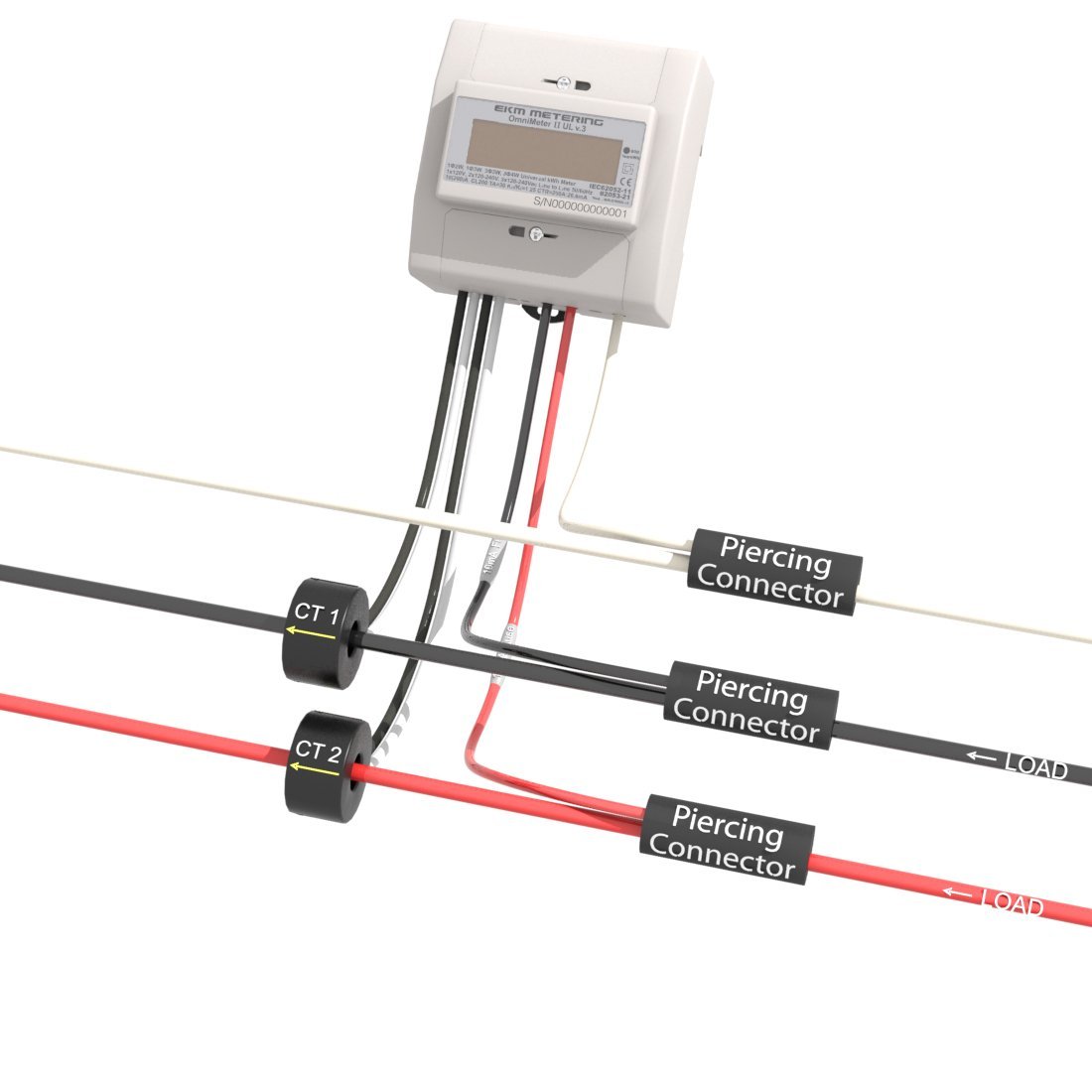

Single-Phase 3-Wire (2 Hots and Neutral) + Push3

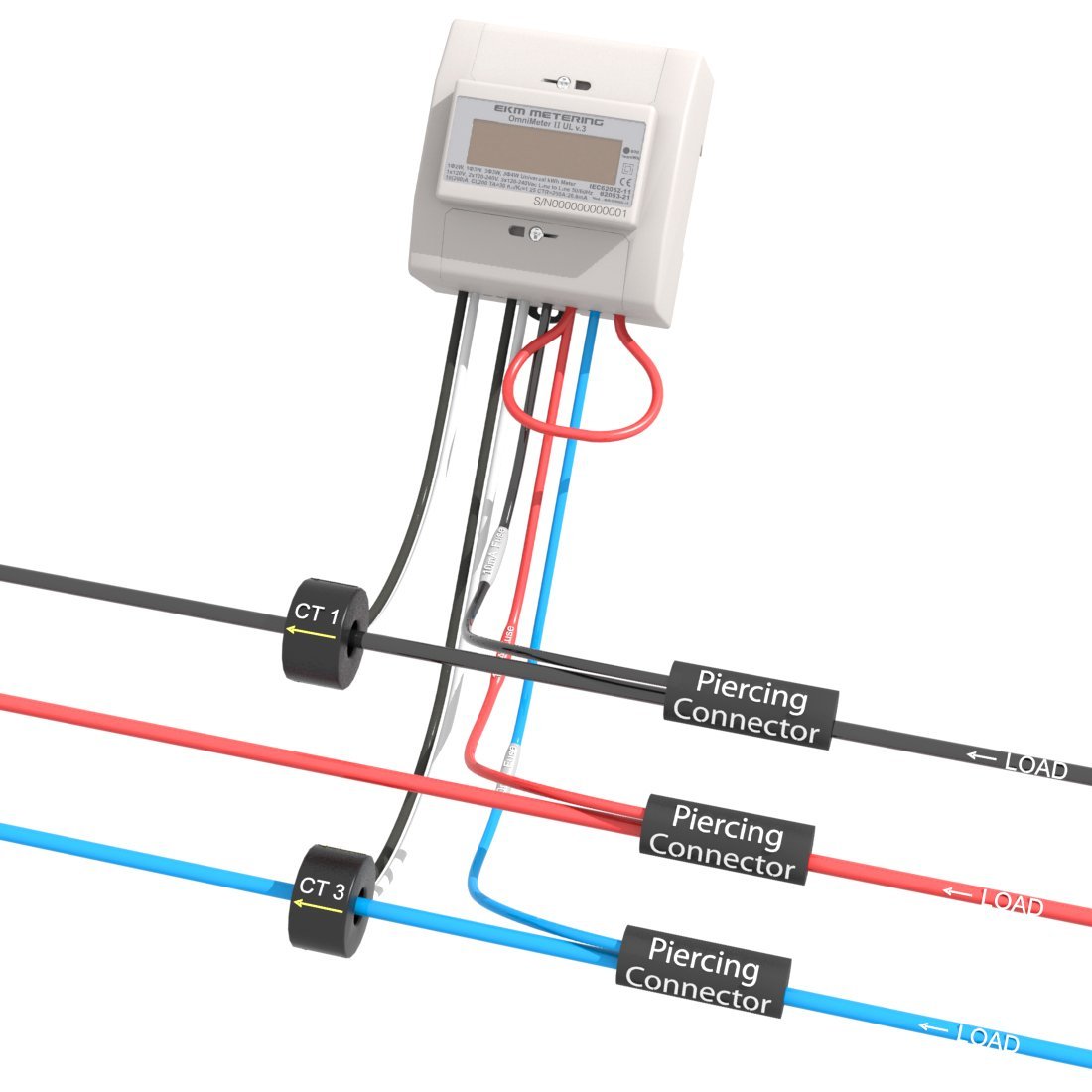

Three-Phase 3-Wire (3 Hots, no Neutral) + Push3

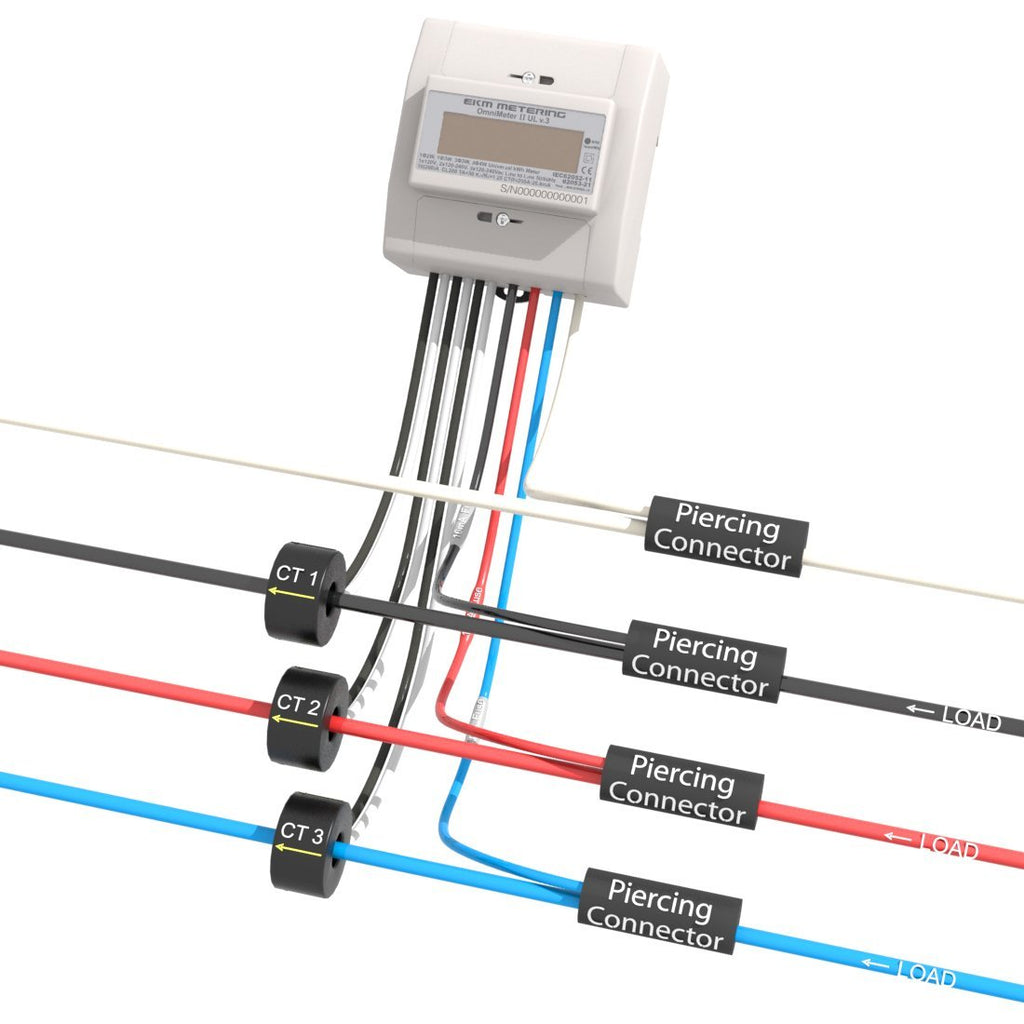

Three-Phase 4-Wire (3 Hots and Neutral) + Push3

Single-Phase 2-Wire (Hot and Neutral) + Push3 + 485Bees

Single-Phase 2-Wire (2 Hots, no Neutral) + Push3 + 485Bees

Single-Phase 3-Wire (2 Hots and Neutral) + Push3 + 485Bees

Three-Phase 3-Wire (3 Hots, no Neutral) + Push3 + 485Bees

Three-Phase 4-Wire (3 Hots and Neutral) + Push3 + 485Bees
