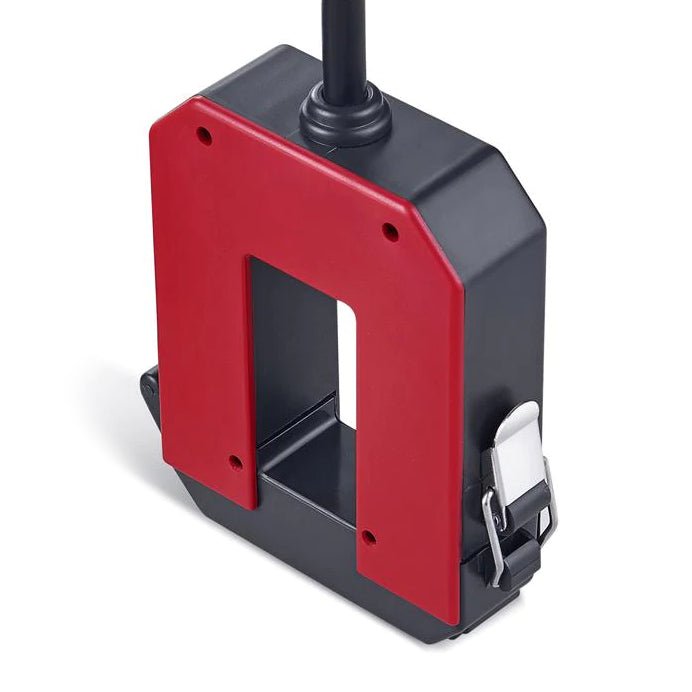

Split-Core 800A Current Transformer, 800A:26.6mA, OSCT-063x033-800

CT Type: Split-Core

Amperage: 800 amps

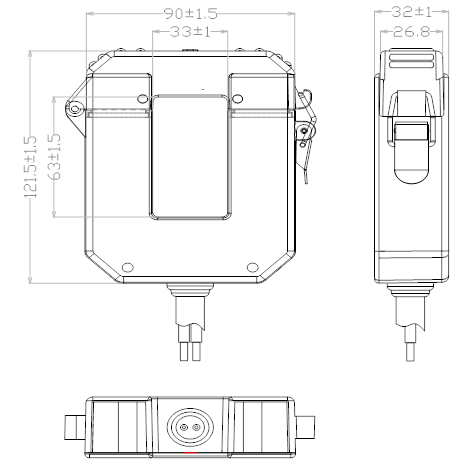

Inside Diameter: 63 x 33 mm

Outside Diameter: 123 x 106 mm

Thickness: 32 mm

Model: OSCT-063x033-800

Certifications: IP65, ANSI C57.13, IEC61869-2

For use with our Omnimeter line of electric kWh meters and for installations where the CTs will be exposed to weather or another kind of wet environment.

These CTs are extremely accurate and will meter heavy loads to a high degree of precision. They have 30,075 internal turns, creating a 26.6 mA output at full amperage (800A). They are also exceedingly precise at 0.1% accurate which makes them ideal for revenue-grade applications. Use these CTs for any system from under 1 amp to 800 amps.

Split-core CT (Open-able), 800A, 800A:26.6mA, 65mm Hole Diameter, OSCT-063x033-800

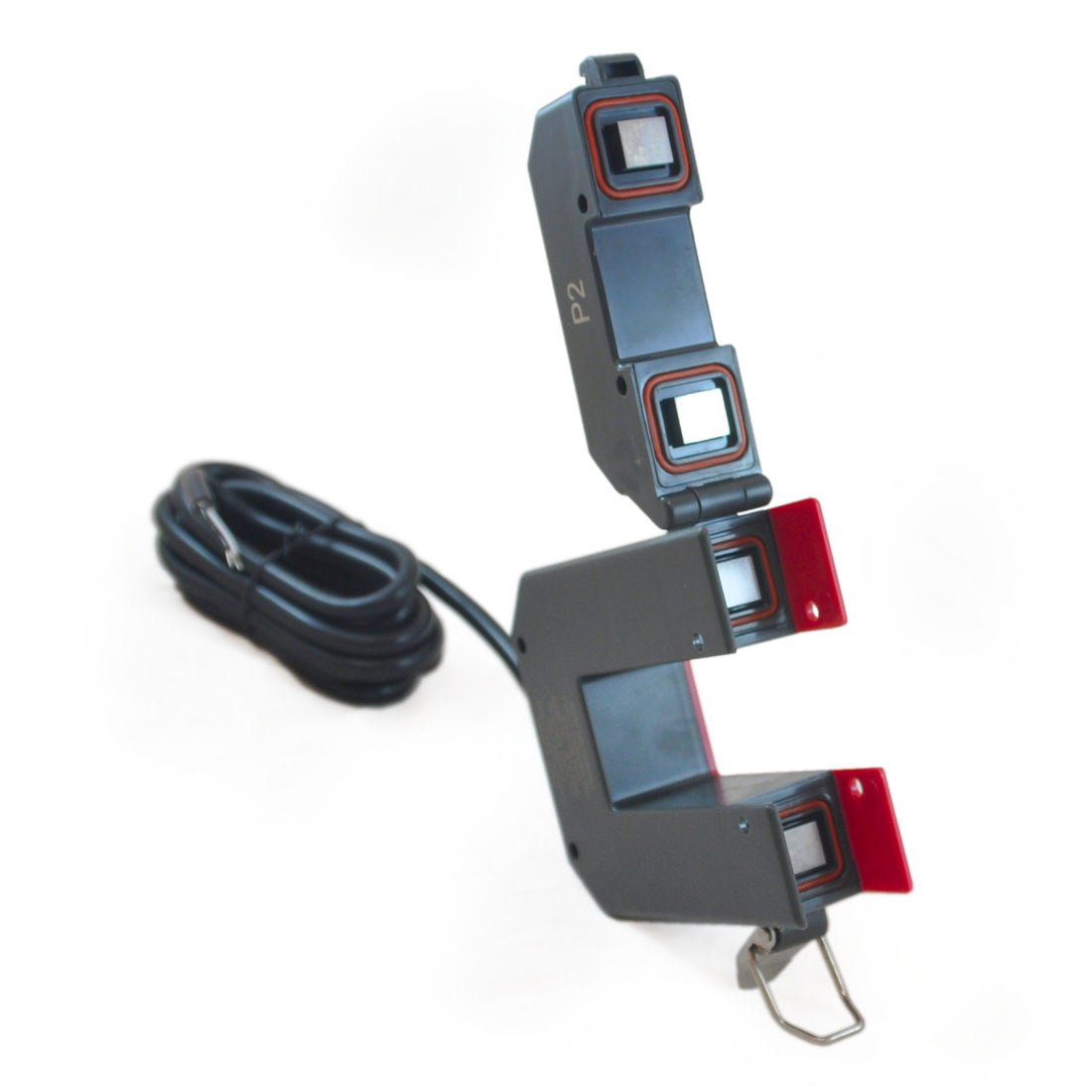

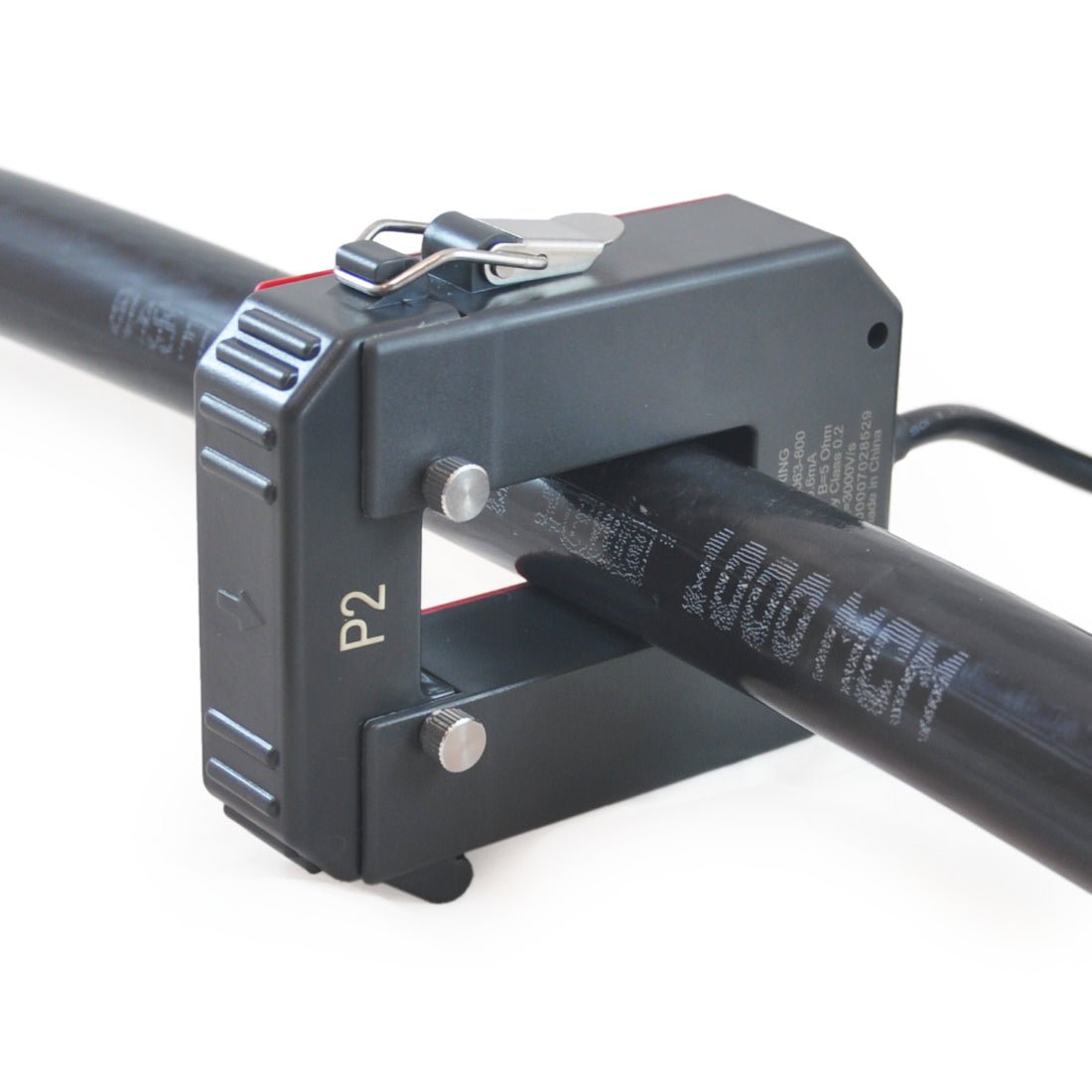

Select these 800 amp CTs for ease of installation. If you do not want to disconnect your wires, or if you do not have good access to the wires being read, the split core design may be a labor savings for you. Simply close them around the wires being read and snap the catches into place.

  • Use 1 CT for 120 volt single phase North American, or 230 volt 2-wire foreign systems
  • Use 2 CTs for 120/240 volt single phase systems
  • Use 2 CTs for 3-phase 3-wire systems (no neutral)
  • Use 3 CTs for 3-phase 4-wire systems

These are 0.1% accurate CTs with a 26.6 mA output. Our line of CTs have superior abilities at measuring the phase angle of AC systems.

Use with our Universal EKM Omnimeter line of kWh meters

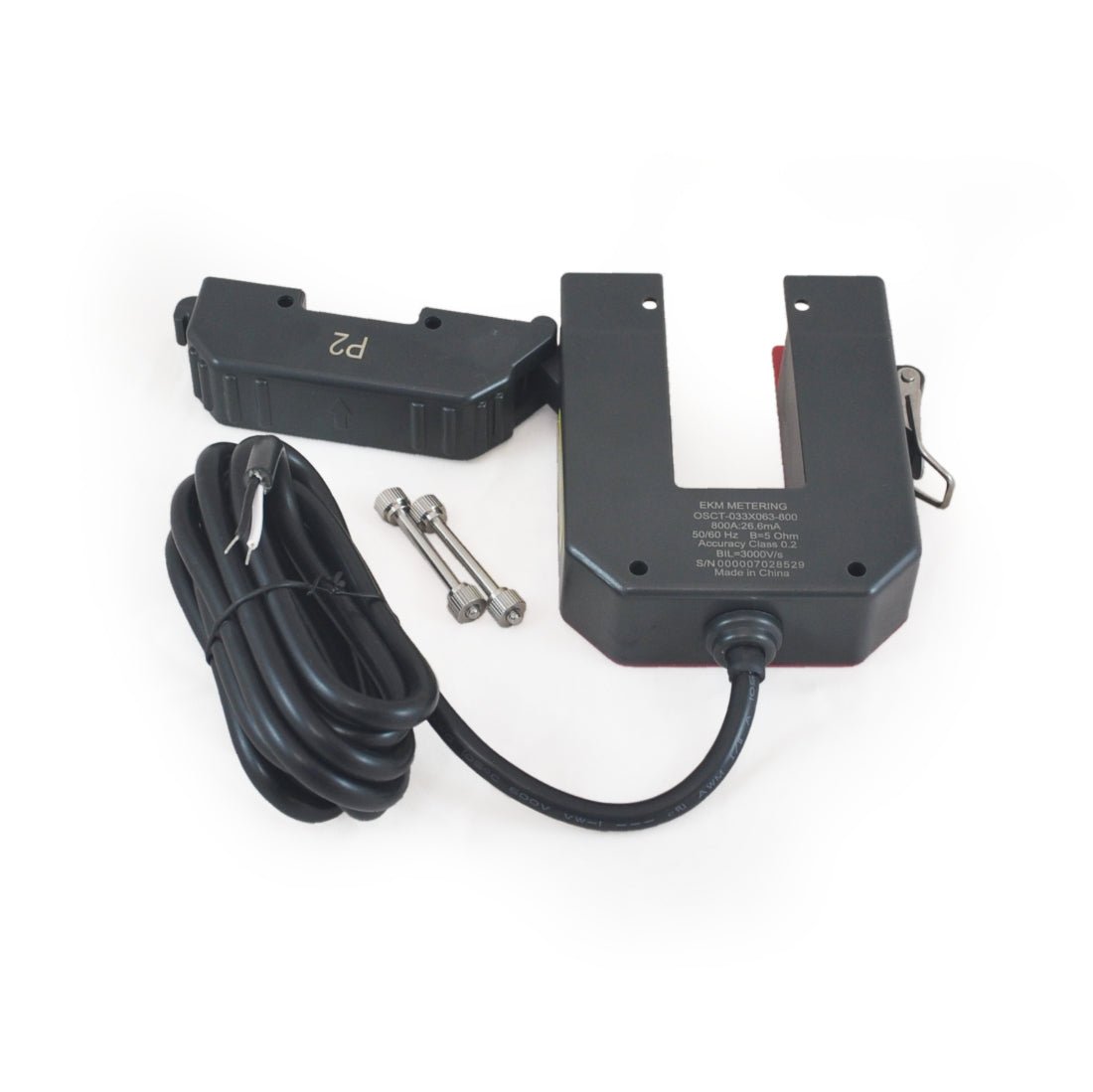

Each CT comes with 6 feet of wire leads.

For more information about our products and services, we encourage you to visit our online Knowledge Base, which provides spec sheets, videos, tutorials, FAQs, diagrams, and more.

QUESTIONS & ANSWERS

Ask a Question
  • How much does the OSCT-063x033-800 weight?

    The OSCT-063x033-800 Outdoor CT weighs 1.9 lbs
