EKM Omnimeter Pulse v.4: conteo de pulsos, control de relés, medidor eléctrico inteligente universal

$285.00

descripción
Este medidor de kWh universal se puede usar en casi cualquier sistema eléctrico de uso común y también puede contar pulsos de hasta 3 dispositivos de salida de pulsos, así como controlar hasta 2 relés externos.
View More

More information

Descripción: Universal, conteo de pulsos, control de relés, medidor inteligente

Funciones: Conteo de pulsos y controles de relé

Voltaje: 120 voltios, 120/240 voltios, 120/208 voltios, 230 voltios, 277 voltios, 480 voltios

Amperaje: Hasta 5000 amperios

Tipo: CT externo, 50 o 60 Hz

Sistema: Monofásico, Trifásico. 3 hilos o 3 fases. 4 hilos

Datos: Smart Meter v.4 Comunicaciones RS-485

Modelo: EKM-Omnimeter Pulse v.4

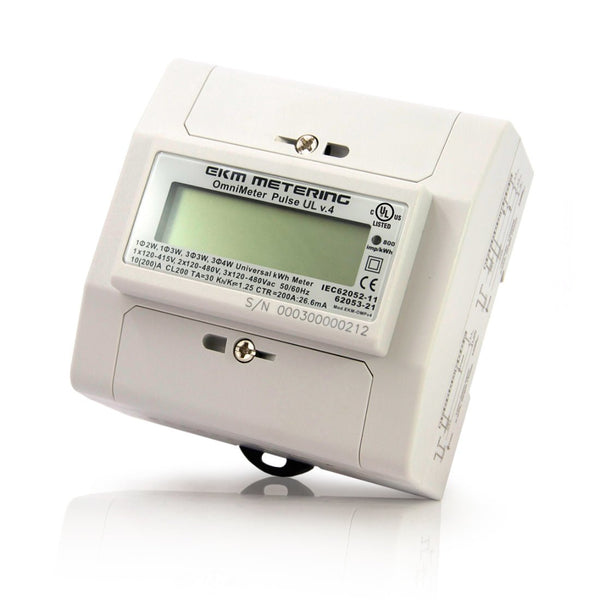

EKM-OmniMeter Pulse v.4: nuestro medidor inteligente universal más avanzado hasta la fecha, ahora con la capacidad de contar pulsos de hasta 3 dispositivos de salida de pulsos y controlar 2 relés externos. ¡Este es realmente el único medidor para satisfacer todas sus necesidades de medición!

El Omnimeter Pulse UL v.4 puede contar los pulsos de hasta 3 dispositivos de salida de pulsos diferentes, como se explica en este video . Estos pueden ser pulsos de nuestros medidores de agua y gas con salida de pulsos o de cualquier otro dispositivo de salida de pulsos de contacto seco sin alimentación. Las relaciones de entrada de pulsos se pueden configurar en el software de 1 a 9999 pulsos por incremento (la relación predeterminada ahora es 1:1). El estado en tiempo real de las 3 entradas también se puede sondear en el software EKM Dash , el Omnimeter Pulse v.4 devolverá un estado alto o bajo para cada pin en tiempo real (use esto para detectar estados de interruptor, puertas abiertas o cerradas) , etc).

El Omnimeter Pulse v.4 viene con 2 salidas de relé controlables. Estos se pueden controlar a través de RS-485, ya sea localmente o por Internet desde cualquier parte del mundo utilizando el EKM Dash . Puede configurar las salidas para que sean altas o bajas para controlar un relé externo. Las salidas de control de relé pueden proporcionar continuamente hasta 50 mA a 12 voltios CC cada una. Controle el EKM-Switch120 directamente, o controle luces, motores, edificios completos, implemente Demand Response, Load Shedding, etc. a través del control de relé. Las salidas de control de relé también se pueden configurar para que se enciendan o se apaguen de 1 a 9999 segundos. El estado en tiempo real de las salidas también se puede sondear a través de RS485. Las salidas también se pueden utilizar para alimentar un dispositivo externo (módulo inalámbrico 485Bee, sensores, etc.). Los relés se pueden controlar en línea al leer el medidor con el sistema de datos EKM Push3, o localmente al leer el medidor con un convertidor USB .

El Omnimeter Pulse también es un medidor de kWh universal de nivel de ingresos. Puede medir sistemas que van desde monofásicos de 120 V de 2 hilos o monofásicos de 120/240 V de 3 hilos, de 120 V a 480 voltios, o trifásicos de 3 hilos de 120 a 415 voltios o trifásicos de 4 hilos de 120 a 480 V, 50/60 Hz, 50/60 Hz. Soporta CTs desde 100A hasta 5000A. Precisión al 0,5% (Clase 0,5)

El único sistema de medición que se usa comúnmente y que este medidor NO admitirá es el trifásico de 3 hilos de 480 voltios (le recomendamos que use nuestro EKM Omnimeter HV v.5 para este sistema).

Este medidor ha sido probado y certificado con precisión por el Departamento de Pesos y Medidas del Estado de California. Tiene aprobación de tipo de California y cumple con los estándares de California para la medición de grado de ingresos. Muchos otros estados aceptan la aprobación de tipo de California para sus requisitos de medición.

Este medidor utiliza nuestra gama completa de transformadores de corriente compactos (no puede medir electricidad sin al menos uno). La relación de CT se puede configurar internamente para trabajar con CT de hasta 5000 amperios (no se necesita multiplicador).

  • Use 1 CT para sistemas norteamericanos monofásicos de 120 voltios o extranjeros de 230 voltios y 2 hilos
  • Use 2 CT para sistemas monofásicos de 120/240 voltios
  • Utilice 2 TI para sistemas trifásicos de 3 hilos (sin neutro)
  • Use 3 CT para sistemas trifásicos de 4 hilos

Fácil montaje en riel DIN con clip.

Cómo instalar un Omnimeter Pulse v.4:


Estos medidores también son compatibles con nuestro revolucionario sistema EKM Push3 . Esta es nuestra solución de datos de medidores plug-and-play basada en la nube. Estamos realmente entusiasmados con este nuevo sistema y lo recomendamos para la mayoría de las aplicaciones de lectura remota que utilizan nuestros modelos Omnimeter. Los usuarios de Push3 también pueden aprovechar Encompass.io , que es nuestro panel de control en línea gratuito y la suite de administración de medidores.

Encompass.io

Encompass.io es nuestra plataforma gratuita de administración de medidores en línea para monitorear datos, administrar medidores,generar facturas y más. Está diseñado específicamente para personas que leen sus medidores de forma remota a través del sistema Push3. Esta plataforma se puede usar para visualizar datos en tableros personalizables, visualizar costos, monitorear tendencias, agrupar medidores y mucho más. Cada medidor y grupo de medidores en Encompass también se puede configurar para enviarle por correo electrónico facturas en PDF a usted y/o a su inquilino. Aquí hay una muestra de factura de electricidad en PDF:


Widget EKM

El widget EKM ofrece otra opción para ver rápidamente los datos de su medidor en línea para los usuarios de Push3. También es fácil guardar y compartir la configuración de su widget una vez que lo haya configurado como desee. Aquí hay un ejemplo:


Carrera EKM

Nuestros omnímetros también son totalmente compatibles con nuestro software gratuito de lectura remota EKM Dash . Si desea leer su Omnimeter en una computadora localmente, sin el sistema EKM Push3, entonces este software es lo que usaría. También necesitará un convertidor USB EKM Blink para hacerlo.

Para obtener más información sobre nuestros productos y servicios, lo alentamos a que visite nuestra Base de conocimientos en línea, que proporciona hojas de especificaciones, videos, tutoriales, preguntas frecuentes, diagramas y más.

Hoja de especificaciones: Omnimeter Pulse v.4 Hoja de especificaciones




Para comprender mejor las diferencias entre los modelos de Omnimeter, puede descargar nuestro Cuadro de comparación de dispositivos de comunicación y Omnimeter .
