EKM Dash Meter Software

Our user-friendly software allows you to read meters which are connected to your computer, whether it be a PC (Windows XP+), Mac (OSX 10.5+), or Linux, and whether the meter is connected directly with one of our EKM Blink USB to RS-485 converters, over a LAN network, or over the internet with the iSerial TCP/IP to Serial Converter or with our cloud based EKM Push system. From this application you can visualize your data on graphs, read all of the meter parameters, set meter numbers (addresses), reset Maximum Demand, have meter usage logged to a file, schedule Email reports, and much more. This is a direct replacement for our legacy EKM Reader software. It features all of the same functionality and more, in a much more stable and easy to use package.

Download Dash v1.8.3

Try a free 30-day trial. Download your copy with the links below.

EKM Dash For Windows

EKM Dash For Mac

EKM Dash For Linux

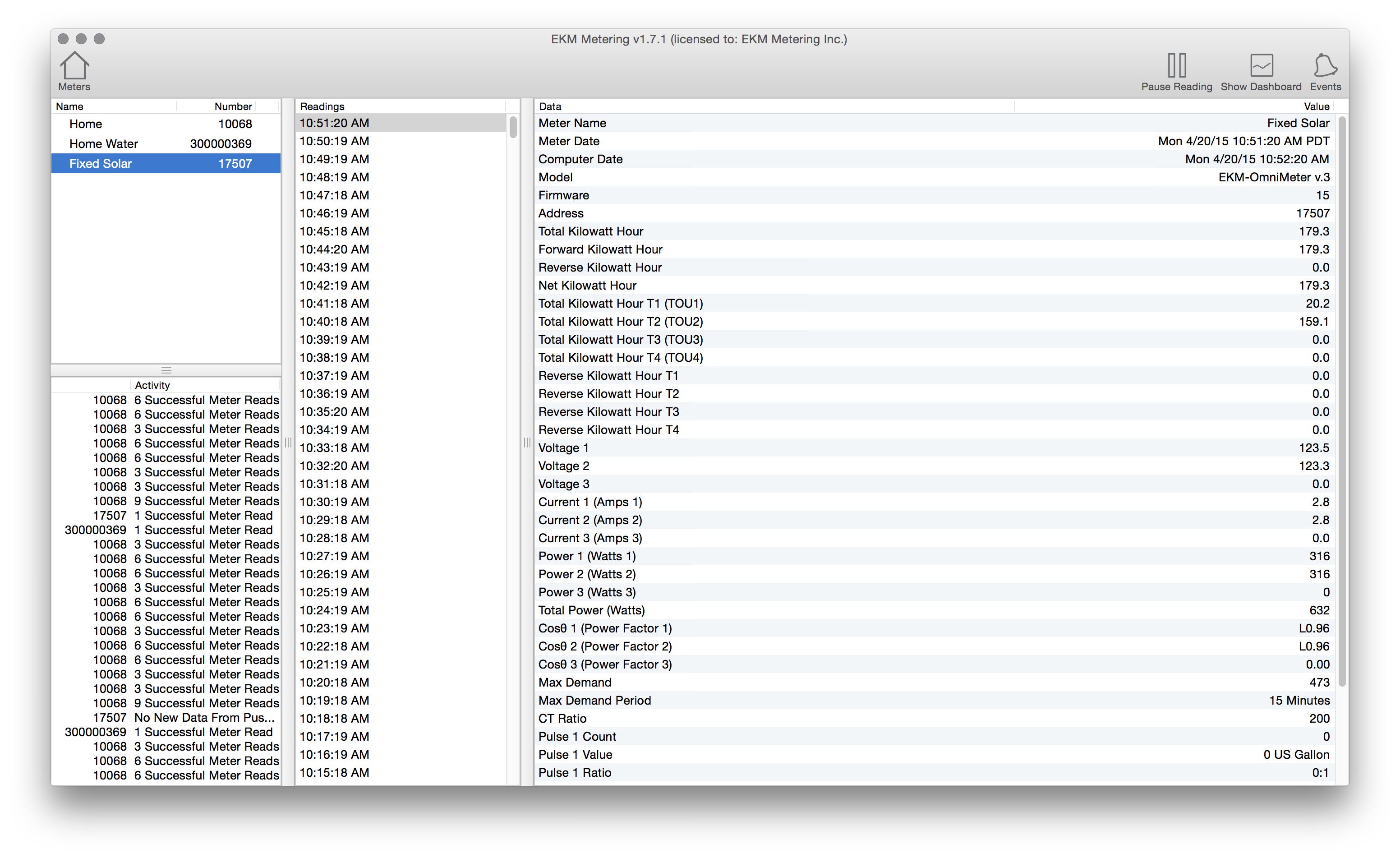

EKM Dash Main Window

Features

We are offering the Dash as a free 30-day trial, you can also purchase a user key to extend the full functionality. This key will give you unlimited use of the unrestricted EKM Dash. After the free 30-day trial is up the software will still be usable but will lose some of its functionality, like the ability to log data or send emails. The unrestricted version provides logging of meter reads to .csv files. It also can generate automatic monthly reports emailed to individual meter users. Once purchased, all updates to the software are free.

The software will work with EKM V.2, V.3, and new v.4 smart meters. Meter reads give Total kWh, Reverse kWh and Maximum Demand, plus Instantaneous Current, Voltage, Power, Power Factor, as well as 6 months of monthly records stored on board the meter, including 4 Time-of-Use Rates for 4 Daily Time Periods and 6 Seasons. Omnimeter Pulse v.4 meters return quite a bit of additional data.

The Dash can also display a visual representation of your data. Seen here:

EKM Dash Dashboard

Please Note: pulse count data from water and/or gas meters, provided by the Omnimeter Pulse v.4, can only be visually presented when using the EKM Push system.

The EKM Dash can also retrieve v.3 and v.4 Omnimeter data directly from the EKM Push system. This is very easy to setup. It allows you to take Push data and create .csv files, graphs and spreadsheets, store an unlimited number of reads on your local hard drive, send data to wattvision, create email reports, and more. To learn more about setting up Dash on your computer, click the link to see some EKM Dash tutorials in our online Knowledge Base.

EKM Dash Reports

Setup Instructions: Instructions for setting up your EKM Dash software

Information: EKM Dash User Manual

When making settings in a meter using the Dash software, you will be prompted for your meter password. This password is "0" by default.

To purchase a registration key for the EKM Dash, go to our EKM Dash product page here: EKM Dash Registration Key. The software is a $30 one time cost, no monthly or annual fees.

We also help you to write your own software, by either communicating with the meter directly (harder) or interfacing with the EKM Push system (quite easy). To get started visit our Developer Portal

For more information about how to set up EKM Dash, we encourage you to visit our online Knowledge Base, which includes a series of tutorials that will help you get started with the software.

EKM Dash Tutorial Videos:

How to Register EKM Dash



How to add Push meters to EKM Dash



How to Set Up Pulse Counting in EKM Dash
